Pompe swimm pompa per piscine
Pompe swimm pompa per piscine
swimm pool pump

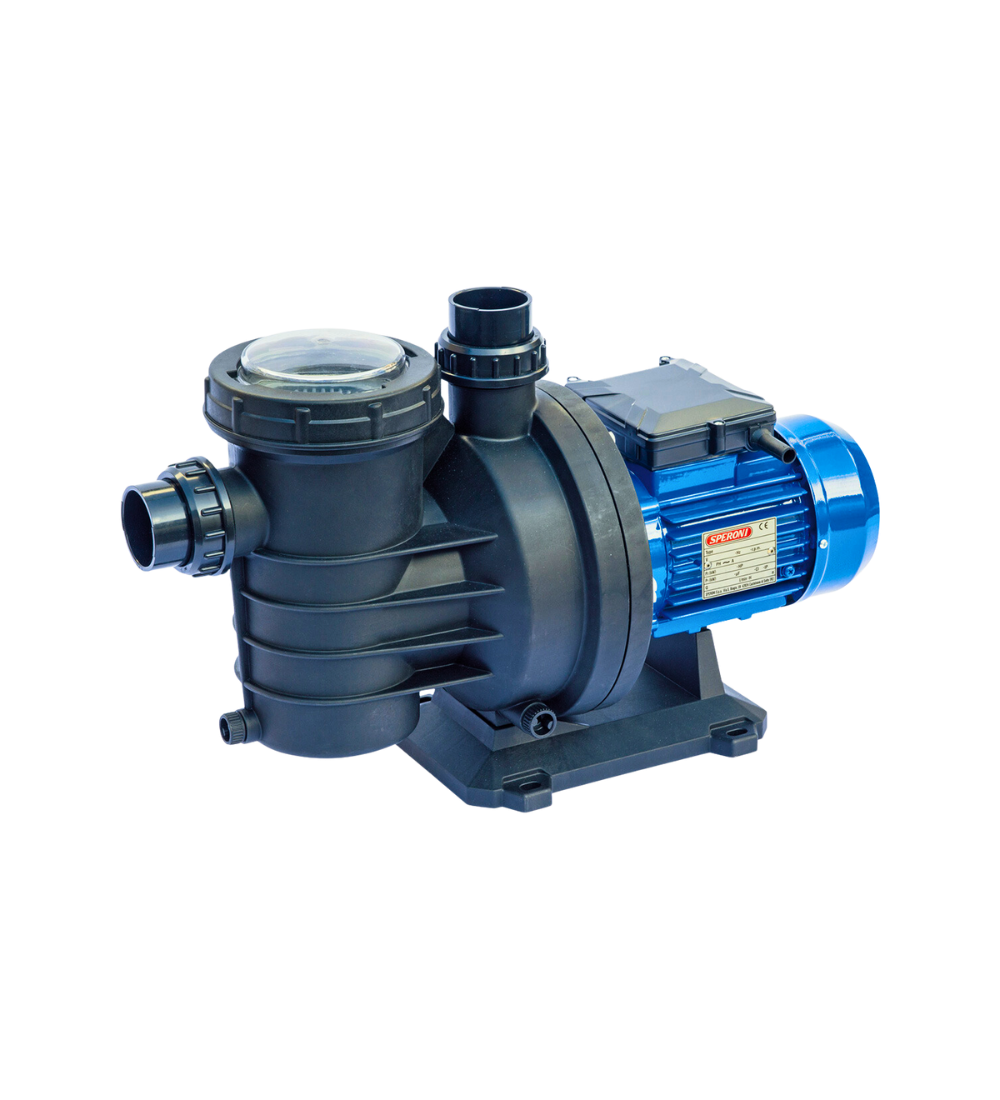

SWIMM self-priming electric pumps guarantee high hydraulic performance and a considerable flow capacity, making them ideal for lifting and distributing water in pool purification systems. These pumps are designed to suck up to 8 meters deep and work perfectly even in the presence of water mixed with gas, offering a reliable and efficient solution for pool maintenance.

Technical Specifications

  • Liquid temperature: up to 35°C
  • Ambient temperature: up to 40°C
  • Service: continuous
  • Motor: Single phase 230V-50Hz / Three phase 230/400V-50Hz
  • Engine speed: 2850 min -1
  • Insulation class: F
  • Protection: IPX 5

Materials

  • Pump body: Polypropylene
  • Engine mount: Aluminum
  • Impeller: Noryl
  • Basket filter: Polypropylene
  • Mechanical seals: Silicon/Silicon/NBR

Product Features

SWIMM electric pumps are designed to offer superior performance in swimming pool applications. These self-priming pumps can suck water up to 8 meters deep and are able to operate effectively even in the presence of water mixed with gas. The range of available models, ranging from the SWIMM 500 to the SWIMM 4000T, allows you to choose the most suitable solution based on your specific needs for flow rate and total manometric head.

The 2-pole induction electric motors, with insulation class F and IPX 5 protection, ensure reliability and durability over time. The maximum liquid temperature that can be handled is 35°C, while the ambient temperature can reach up to 40°C, thus ensuring wide versatility of use. SWIMM pumps are suitable for continuous use, offering constant and uninterrupted performance.

Applications

SWIMM electric pumps are ideal for lifting and distributing water in pool purification systems. Their ability to operate in difficult conditions, sucking water mixed with gas, makes them particularly effective in applications where the water quality can vary. Thanks to their robust construction and the high-quality materials used, such as polypropylene and Noryl for the pump body and impeller, SWIMM pumps offer resistance to corrosion and a long operating life.

Dimensions and Weight

  • SWIMM 500: 8.7 kg
  • SWIMM 750: 10.9 kg
  • SWIMM 1000: 12.2 kg
  • SWIMM 1500: 12.9 kg
  • SWIMM 2000: 16.2 kg
  • SWIMM 3000T: 17.5 kg
  • SWIMM 4000T: 18.5 kg

Table of Courses

Model Flow rate (l/min) Prevalence (m)
SWIM 500
  • 25 l/min: 11 m
  • 50 l/min: 10.5 m
  • 75 l/min: 10 m
  • 100 l/min: 9 m
  • 150 l/min: 7 m
  • 200 l/min: 5 m
  • 250 l/min: 2.5 m
SWIM 750
  • 25 l/min: 13 m
  • 50 l/min: 12.5 m
  • 75 l/min: 12 m
  • 100 l/min: 11.5 m
  • 150 l/min: 10 m
  • 200 l/min: 7.5 m
  • 250 l/min: 4.5 m
  • 275 l/min: 3 m
SWIM 1000
  • 25 l/min: 17 m
  • 50 l/min: 16.5 m
  • 75 l/min: 16 m
  • 100 l/min: 15.5 m
  • 150 l/min: 14.5 m
  • 200 l/min: 13 m
  • 250 l/min: 10 m
  • 275 l/min: 8.5 m
  • 300 l/min: 7 m
  • 350 l/min: 3 m
SWIM 1500
  • 25 l/min: 18 m
  • 50 l/min: 17.5 m
  • 75 l/min: 17 m
  • 100 l/min: 16.5 m
  • 150 l/min: 15.5 m
  • 200 l/min: 14.5 m
  • 250 l/min: 13 m
  • 275 l/min: 12 m
  • 300 l/min: 11 m
  • 350 l/min: 9 m
  • 400 l/min: 6 m
  • 450 l/min: 3 m
SWIM 2000
  • 25 l/min: 20 m
  • 50 l/min: 19 m
  • 75 l/min: 18.5 m
  • 100 l/min: 18 m
  • 150 l/min: 17.8 m
  • 200 l/min: 17 m
  • 250 l/min: 15.7 m
  • 275 l/min: 14.8 m
  • 300 l/min: 14 m
  • 350 l/min: 12 m
  • 400 l/min: 10 m
  • 450 l/min: 8 m
SWIM 3000T
  • 25 l/min: 22.4 m
  • 50 l/min: 22.2 m
  • 75 l/min: 22.1 m
  • 100 l/min: 22 m
  • 150 l/min: 21 m
  • 200 l/min: 20.5 m
  • 250 l/min: 20 m
  • 275 l/min: 19 m
  • 300 l/min: 18 m
  • 350 l/min: 17 m
  • 400 l/min: 15 m
  • 450 l/min: 13 m
SWIM 4000T
  • 25 l/min: 24 m
  • 50 l/min: 23.5 m
  • 75 l/min: 23.3 m
  • 100 l/min: 23 m
  • 150 l/min: 22.8 m
  • 200 l/min: 22.5 m
  • 250 l/min: 22 m
  • 275 l/min: 21 m
  • 300 l/min: 20 m
  • 350 l/min: 19 m
  • 400 l/min: 17.5 m
  • 450 l/min: 15 m

swimm pool pump

Regular price €305.00

Tax included. Shipping calculated at checkout

  • 1.5 hp - 1.1 kw (mod. 1500/n)
  • 230v
  • 380 v

SWIMM self-priming electric pumps guarantee high hydraulic performance and a considerable flow capacity, making them ideal for lifting and distributing water in pool purification systems. These pumps are designed to suck up to 8 meters deep and work perfectly even in the presence of water mixed with gas, offering a reliable and efficient solution for pool maintenance.

Technical Specifications

  • Liquid temperature: up to 35°C
  • Ambient temperature: up to 40°C
  • Service: continuous
  • Motor: Single phase 230V-50Hz / Three phase 230/400V-50Hz
  • Engine speed: 2850 min -1
  • Insulation class: F
  • Protection: IPX 5

Materials

  • Pump body: Polypropylene
  • Engine mount: Aluminum
  • Impeller: Noryl
  • Basket filter: Polypropylene
  • Mechanical seals: Silicon/Silicon/NBR

Product Features

SWIMM electric pumps are designed to offer superior performance in swimming pool applications. These self-priming pumps can suck water up to 8 meters deep and are able to operate effectively even in the presence of water mixed with gas. The range of available models, ranging from the SWIMM 500 to the SWIMM 4000T, allows you to choose the most suitable solution based on your specific needs for flow rate and total manometric head.

The 2-pole induction electric motors, with insulation class F and IPX 5 protection, ensure reliability and durability over time. The maximum liquid temperature that can be handled is 35°C, while the ambient temperature can reach up to 40°C, thus ensuring wide versatility of use. SWIMM pumps are suitable for continuous use, offering constant and uninterrupted performance.

Applications

SWIMM electric pumps are ideal for lifting and distributing water in pool purification systems. Their ability to operate in difficult conditions, sucking water mixed with gas, makes them particularly effective in applications where the water quality can vary. Thanks to their robust construction and the high-quality materials used, such as polypropylene and Noryl for the pump body and impeller, SWIMM pumps offer resistance to corrosion and a long operating life.

Dimensions and Weight

  • SWIMM 500: 8.7 kg
  • SWIMM 750: 10.9 kg
  • SWIMM 1000: 12.2 kg
  • SWIMM 1500: 12.9 kg
  • SWIMM 2000: 16.2 kg
  • SWIMM 3000T: 17.5 kg
  • SWIMM 4000T: 18.5 kg

Table of Courses

Model Flow rate (l/min) Prevalence (m)
SWIM 500
  • 25 l/min: 11 m
  • 50 l/min: 10.5 m
  • 75 l/min: 10 m
  • 100 l/min: 9 m
  • 150 l/min: 7 m
  • 200 l/min: 5 m
  • 250 l/min: 2.5 m
SWIM 750
  • 25 l/min: 13 m
  • 50 l/min: 12.5 m
  • 75 l/min: 12 m
  • 100 l/min: 11.5 m
  • 150 l/min: 10 m
  • 200 l/min: 7.5 m
  • 250 l/min: 4.5 m
  • 275 l/min: 3 m
SWIM 1000
  • 25 l/min: 17 m
  • 50 l/min: 16.5 m
  • 75 l/min: 16 m
  • 100 l/min: 15.5 m
  • 150 l/min: 14.5 m
  • 200 l/min: 13 m
  • 250 l/min: 10 m
  • 275 l/min: 8.5 m
  • 300 l/min: 7 m
  • 350 l/min: 3 m
SWIM 1500
  • 25 l/min: 18 m
  • 50 l/min: 17.5 m
  • 75 l/min: 17 m
  • 100 l/min: 16.5 m
  • 150 l/min: 15.5 m
  • 200 l/min: 14.5 m
  • 250 l/min: 13 m
  • 275 l/min: 12 m
  • 300 l/min: 11 m
  • 350 l/min: 9 m
  • 400 l/min: 6 m
  • 450 l/min: 3 m
SWIM 2000
  • 25 l/min: 20 m
  • 50 l/min: 19 m
  • 75 l/min: 18.5 m
  • 100 l/min: 18 m
  • 150 l/min: 17.8 m
  • 200 l/min: 17 m
  • 250 l/min: 15.7 m
  • 275 l/min: 14.8 m
  • 300 l/min: 14 m
  • 350 l/min: 12 m
  • 400 l/min: 10 m
  • 450 l/min: 8 m
SWIM 3000T
  • 25 l/min: 22.4 m
  • 50 l/min: 22.2 m
  • 75 l/min: 22.1 m
  • 100 l/min: 22 m
  • 150 l/min: 21 m
  • 200 l/min: 20.5 m
  • 250 l/min: 20 m
  • 275 l/min: 19 m
  • 300 l/min: 18 m
  • 350 l/min: 17 m
  • 400 l/min: 15 m
  • 450 l/min: 13 m
SWIM 4000T
  • 25 l/min: 24 m
  • 50 l/min: 23.5 m
  • 75 l/min: 23.3 m
  • 100 l/min: 23 m
  • 150 l/min: 22.8 m
  • 200 l/min: 22.5 m
  • 250 l/min: 22 m
  • 275 l/min: 21 m
  • 300 l/min: 20 m
  • 350 l/min: 19 m
  • 400 l/min: 17.5 m
  • 450 l/min: 15 m
