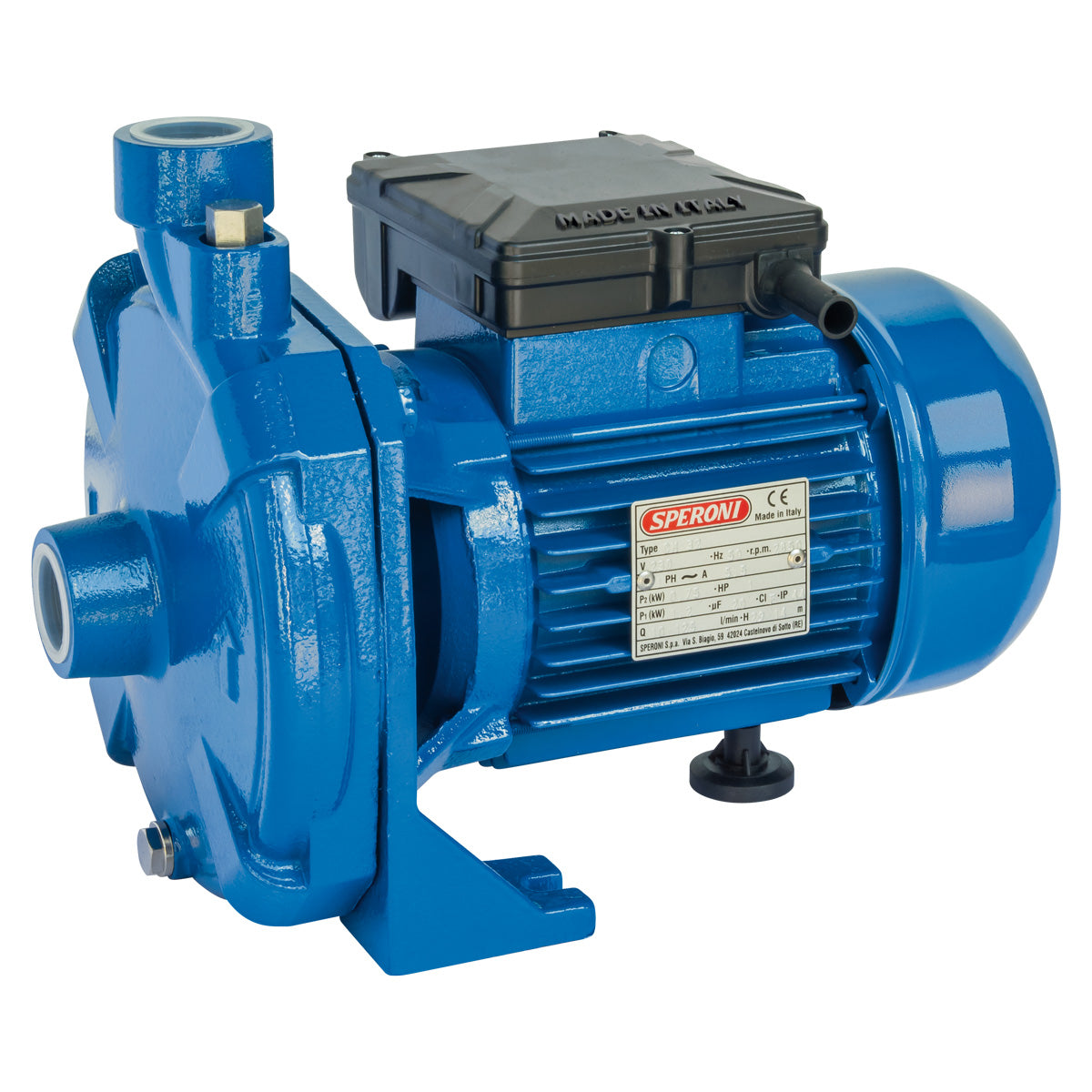

cm single impeller centrifugal pump
The **CM** single-impeller centrifugal electric pumps are the ideal solution to meet the needs of small, medium and large flow rates, guaranteeing excellent performance in various areas of use.
Designed for domestic, agricultural and industrial systems, these pumps are perfect for automatic water distribution through small tanks (pressure tanks). Their versatility also makes them suitable for sprinkler and flow irrigation in gardens and crops, and for increasing the network pressure of aqueducts. **CM** electric pumps offer continuous and reliable operation, making them the ideal choice for those seeking quality performance in different operating conditions.
Main features
- Perfect for small, medium and large servings.
- Ideal for domestic, agricultural and industrial systems.
- Can be used for sprinkler and flow irrigation.
- Ability to increase the network pressure of aqueducts.
Usage limits
- Liquid temperature up to 35°C (domestic use according to EN 60335-2-41).
- Max. liquid temperature: 60°C (for other uses).
- Ambient temperature up to 40°C.
- Manometric suction height up to 7 m.
- Continuous service.
- Minimum efficiency index (BEP) MEI = 0.4.
Technical specifications
| Characteristic | Details |
|---|---|
| Motor | Single phase 230V-50Hz / Three phase 230/400V-50Hz |
| Engine type | 2-pole induction electric motor (n = 2850 min-1) |
| Insulation | Class F |
| Protection | IP 44 |
| Pump body material | Cast iron |
| Engine mount material | Cast iron |
| Impeller material | AISI 304 Stainless Steel |
| Crankshaft material | AISI 304 Stainless Steel |
| Mechanical seal | Ceramic/Graphite/NBR |
