The CAM 100 and CAM 130 self-priming electric pumps offer high hydraulic performance, ensuring constant pressure even in the presence of water mixed with gas. Ideal for domestic systems, they can suck up to 8 meters deep.

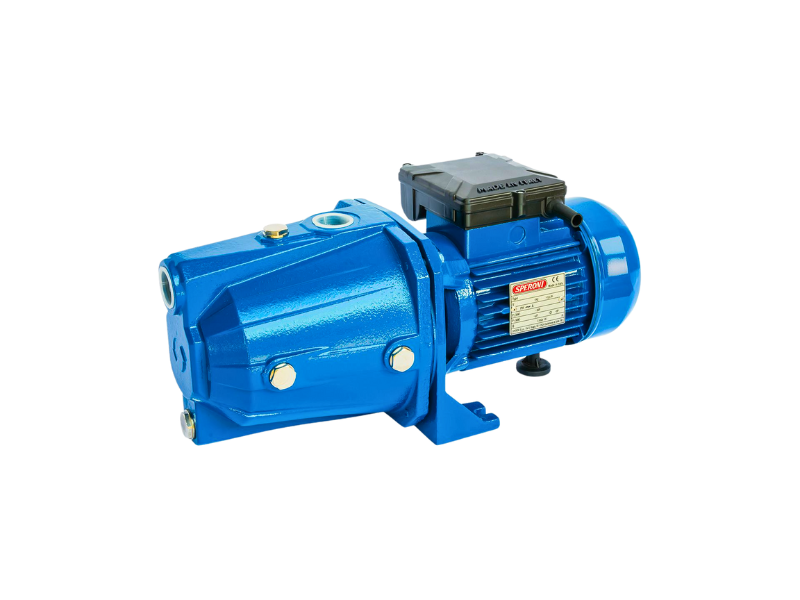

Speroni's CAM 100 and CAM 130 self-priming electric pumps are designed to offer excellent hydraulic efficiency and considerable pressure capacity. They work perfectly even in critical conditions, such as the presence of water mixed with gas, and are ideal for lifting and distributing water in domestic systems with small and medium-sized tanks. With a 2-pole induction motor, available in both single-phase (230V) and three-phase (230/400V) versions, these pumps guarantee continuous operation up to 40°C of ambient temperature. The robust structure is composed of a cast iron pump body, cast iron or aluminum motor support depending on the model, and stainless steel or Noryl impeller. These features make them the perfect solution for those looking for reliability and long life.
Basic information
- Suction capacity up to 8 meters deep
- Continuous operation up to 35°C (water) and 40°C (ambient)
- Single-phase or three-phase induction motor
- Pump body in cast iron and impeller in stainless steel (CAM 100) or Noryl (CAM 130)
- Motor protection IP 44, insulation class F
Performance
Model | Rated power (HP/kW) | Flow rate (m³/h) | Maximum head (m) | Weight (kg) |
---|---|---|---|---|
CAM 100 | 1 HP / 0.75 kW | 0.6 - 3.6 | 46 m | 14.5 kg |
CAM 130 | 1.3 HP / 1 kW | 0.6 - 3.6 | 47 m | 15.1 kg |
