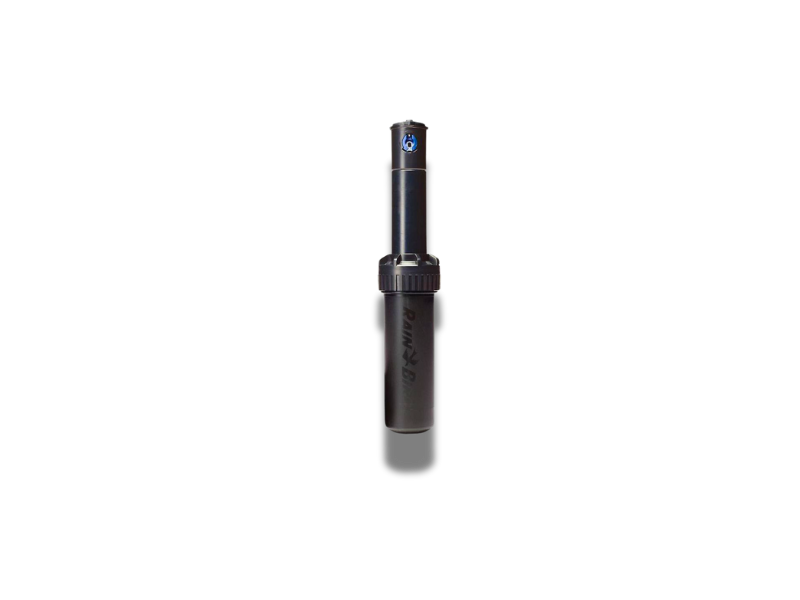

The Rain Bird 5004 Professional Rotor offers long life and excellent performance, plus the precision guaranteed by the 12 extra nozzles contained in this Pro Pack. This system allows you to balance precipitation rates with other rotors in the area or adjust the trajectory to clear low-hanging trees or water windy areas. The patented Rain Curtain nozzle technology ensures even distribution of water across the entire radius, even close to the sprinkler, resulting in a greener lawn with less water.
Technical Specifications
Precipitation rate:
5-26 mm/h
Range:
7.6-15.2 m
Pressure:
1.7-4.5 bar
Flow rate:
4.2-36.6 l/m
Entrance:
3/4" Female NPT Thread
Piston lift height:
10.2 cm
Overall body height:
18.5 cm
Diameter of visible surface:
4.1 cm
Exceptional Durability and Performance
The Rain Bird 5004 Professional Rotor is designed for long life and excellent performance. With 12 extra nozzles included, you can perfectly match precipitation rates with other rotors in the area, adapting the trajectory to clear low-hanging trees or water windy areas, always ensuring uniform coverage.
Variable Irrigation Distance
With a pre-installed 3.0 gpm nozzle, the watering distance varies between 7.6 and 11.5 meters, while by changing the nozzles (included) it can reach up to 15.2 meters. This flexibility allows you to adapt the irrigation to the specific needs of your green space, ensuring uniform distribution of water.
Ease of Adjustment and Maintenance
Adjusting the arc and throw from the top is extremely simple and requires only a flat-head screwdriver. The double-action sealing gasket protects the internal parts from debris, while the durable steel spring ensures easy lifting and retraction of the piston, contributing to significant water savings. In addition, the water-lubricated gear configuration ensures reliable and long-lasting operation.
Rain Curtain Nozzles for Uniform Distribution
Patented Rain Curtain nozzle technology ensures even water distribution across the entire radius, eliminating dry spots around the sprinkler and preventing seed washout. This results in a greener, healthier lawn with less water usage. The Pro Pack includes 12 additional nozzles, including 3 low-angle nozzles ranging from 1.0 to 3.0 gpm and 8 Rain Curtain nozzles ranging from 1.5 to 8.0 gpm, providing even more customization options.
